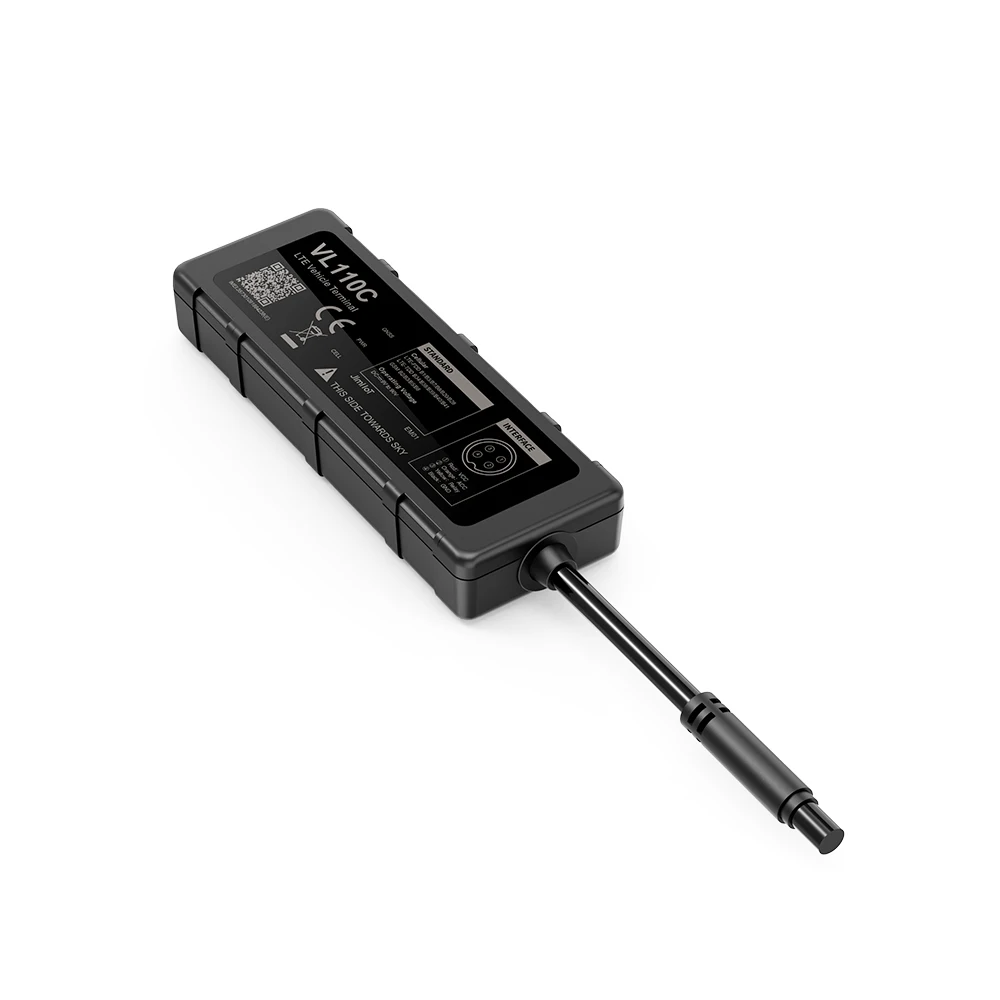

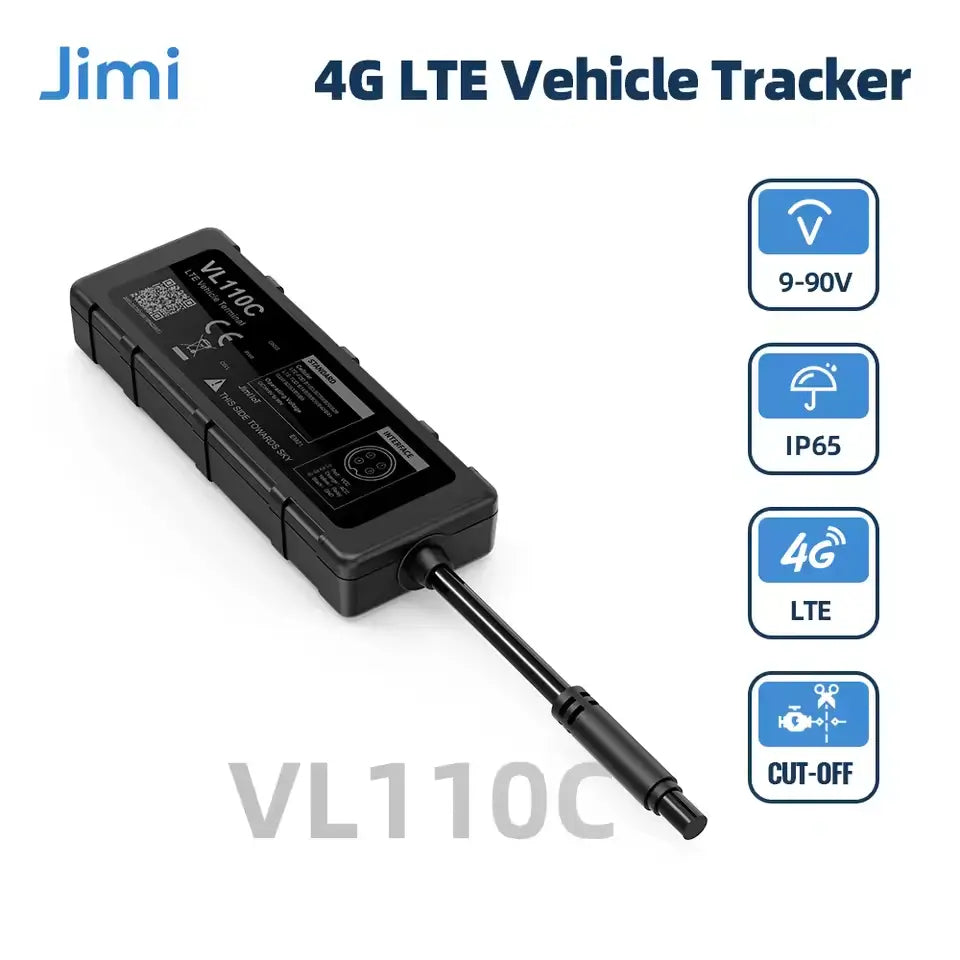

JM-VL110C LTE Vehicle Terminal

The VL110C is a compact 4G LTE Vehicle GNSS Terminal designed for the management of vehicles of all types. The wide 9-90V input voltage range is compatible with almost all vehicles. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases. It is a perfect tracker for a wide range of use cases -stolen vehicle recovery and the management of motorcycles, passenger cars, and light commercial vehicles.

1.JM-VL110C includes 2 versions : VL110C (L) and VL110C (E)
Our Jimi team will send the right version according to your
country, so no worry about whether it can work in your country or not, VL110C will not be problem.
2. JM-VL110C is with 9-90V wide voltage.

It works with all types of vehicles and motorclye.

App Tracking
Platform: search “Tracksolidpro”
on google play and app store to download it.

TracksolidPro is a SaaS platform for GPS tracking and video monitoring. It offers a complete set of services designed for monitoring any driver and person, detect reckless driving behavior, track fleet vehicles and cargoes in real-time, collect
vehicle data, and more to help businesses achieve greater productivity and efficiency. As part of an off-the-shelf turnkey solution, Tracksolid Pro is secure, open, and scalable, and plays an essential role to enable visibility and controllability, simplify management, and optimize resources utilization.

The package of JM-VL110C doesn’t included the sim card ,please confirm the band of sim card you’re going to use matches with one of the JM-VL110C band :
VL110C(E)
LTE-FDD: B1/B3/B7/B8/B20/B28
LTE-TDD: B34/B38/B39/B40/B41
GSM: B2/B3/B5/B8

VL110C (L)
LTE-FDD:：B1/B2/B3/B4/B5/B7/B8/B28
GSM: B2/B3/B5/B8

1. 4G LTE & GSM Network

The device can receive and transmit data in the coverage of 4G and 2G network.

2. GNSS/LTE Jamming Detection

Issue an alarm, trigger a relay for fuel and power cutoff control after the device detects GNSS/LTE jamming (configurable via commands).

3.Remote Cut-Off (Fuel/Power)

Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.

4.Driving Behavior Analysis (Basic)

You will receive Receive alerts when any of 4 kinds of dangerous driving behavior is detected.

5.Vehicle Battery Protection

Disconnect from the vehicle's power supply and operate on its internal battery when the device detects the vehicle battery drops to a critical level.

6.9-90V Operating Voltage

Wide operating voltage range is suitable for a huge variety of vehicles, including industrial equipment, scooters, golf carts, and more.

7.IP65 Water & Dust Resistance

Rugged design ensures continued optimal performance, even in the toughest conditions.

You can know more about the VL110C from the pictures.

VL110C Details

Characteristics

Hign-concerned Chemical None

Screen Size No screen

Battery Life 1 To 4 Hours

Item Size 94(L)*34(W)*15(H)mm

Out Power 9-90V

Model Name VL110C

Gps Module Yes

Brand Name Jimi

Origin Mainland China

Special Features Remote Control

GPS type GPS Tracker

Certification CE,FCC

APP Tracksolidpro

Box Weight 155g

Product weight 44g

Positioning system GPS+GLONASS+BDS+LBS

Communication System LTE Cat 1 2G (GSM)

GPS Data storage 3000 Pieces

Battery 270mAh/3.7V industrial-grade Li-Polymer battery

Warranty 2 years

Positioning accuracy less than 10 meters

SIM Nano-SIM

IP rating IP65

Built-in GNSS antenna

USB Type-C (for firmware upgrade)

Scenarios LTE and GPS jamming detection

Driving behavior analysis Harsh acceleration, Harsh braking, Harsh cornering, Collision
