Description

Main Features:
1. 4G LTE CAT1+ 2G GSM/GPRS
2. Realtime Tracking
3. History Route Playback
4. Positioning Type: GPS+BDS+GLONASS+AGPS+LBS
5. Built-in 3.7V 20000mAh Li-ion battery, can standby up to 50 days.
6. Waterproof IP67
7. Geo-fence
8. Motion and No Motion Alarm.
9. LIFETIME FREE Web Tracking Platform and Mobile APP.
10. The Tracking Platform Supports Multiple Languages.

www.micodus.net
iOS&Android APP: Micodus

Model	MP30G
Weight	476.5g
Dimensions	110mm(L)77mm(W)46mm(H)
Battery	Built-in 20,000 mAh (3.7V polymer battery)
Waterproof Level	IP67
Working Voltage	3.4V-4.5V DC
Operating Voltage/Current	4V/60mA (average)
Standby Voltage/Current	4V/5mA (average)
Working Temperature	-20°C – 75°C
Storage temperature	-30°C – 80°C
Working Humidity	10%-85%RH (non-condensing)
SIM Card	Nano SIM
Celluar Antenna	Built-in, FPC
Communication Module & Chip	SIMCOM 7670C-LASE
Working Frequency	MP30G-SA 2G GSM/GPRS: 850/900/1800/1900MHz 4G LTE-FDD: B1/B2/B3/B4/B5/B7/ B8/B28/B66
Working Frequency	MP30G-EU 2G/GSM: 900/1800MHz 4G LTE-FDD: B1/B3/B5/B7/B8/B20
GNSS	GPS+BDS+GLONASS+AGPS
Positioning Module Brand/Chip	AT6558R
Tracking sensitivity	-162 dBm
GPS Frequency	L1: 1575.42±1.023MHz
BDS Frequency	B1:1561.098±2.046MHz
Satellite Channels	32
Cold Start Time	Average 32 seconds
Warm-up time	Average 1 second
Antenna Specifications	18mm × 18mm × 2mm
Positioning Type	GPS+BDS+GLONASS+LBS+AGPS
Accurancy	Location accuracy: <2m（1σ）
	Timing accuracy: <30ns（1σ）
	Speed accuracy: <0.1m/s（1σ）
Charging port	1 channel

Product Applications

Designed for livestock tracking and pasture management, widely applied to cattle, sheep, horses, yaks and other grazing animals. Ideal for farms, pastures, mountain grazing areas and livestock free-range breeding scenarios.

Real Time Tracking &History Route Playback

Manual pasture patrols are inefficient and unreliable, making it hard to monitor livestock activity and trace missing cattle and sheep. This device delivers real-time location tracking and full historical route playback, allowing you to master herd movement status at all times and avoid breeding losses.

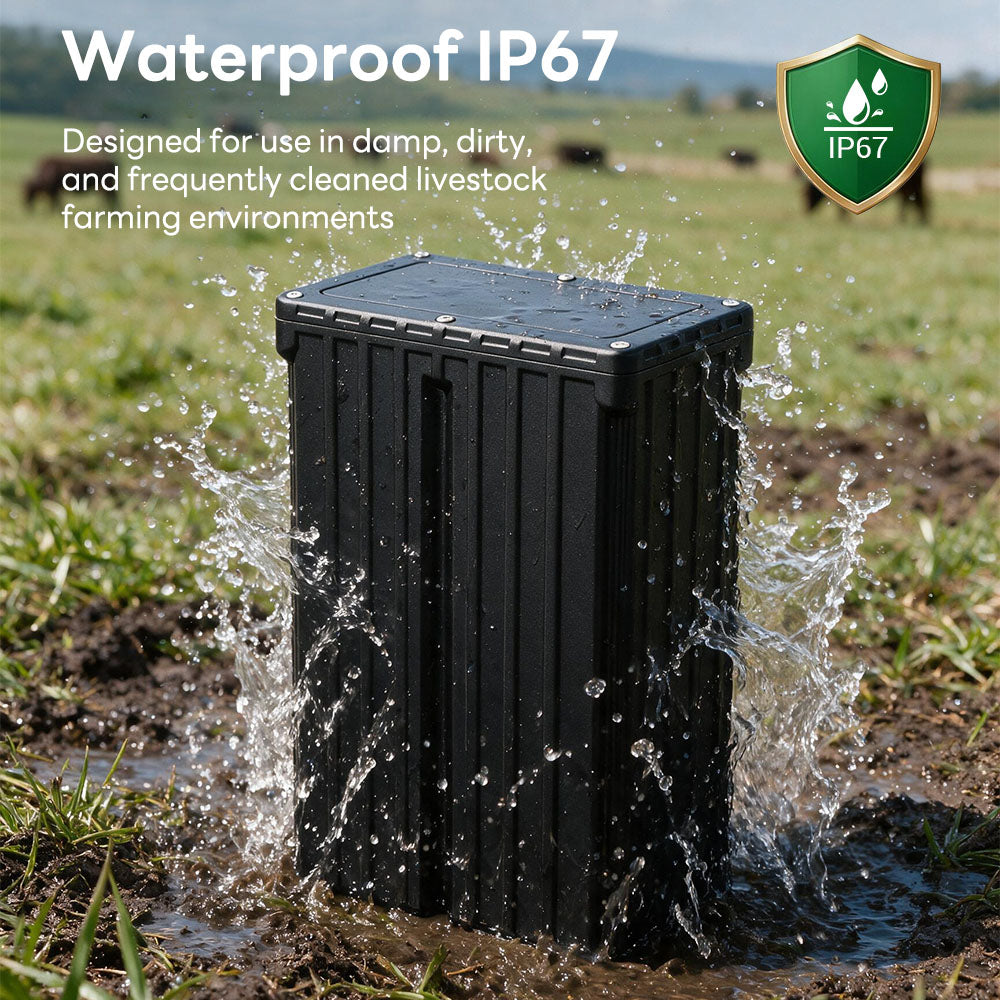

Waterproof IP67

IP67 full waterproof design adapts to all harsh outdoor weather, ensuring stable long-term operation for livestock outdoor grazing.

Motion Alarm & No Motion Alarm

Motion and no-motion dual alarm function monitors livestock activity status intelligently, instantly reminds you of abnormal behaviors, and realizes unattended safe breeding.

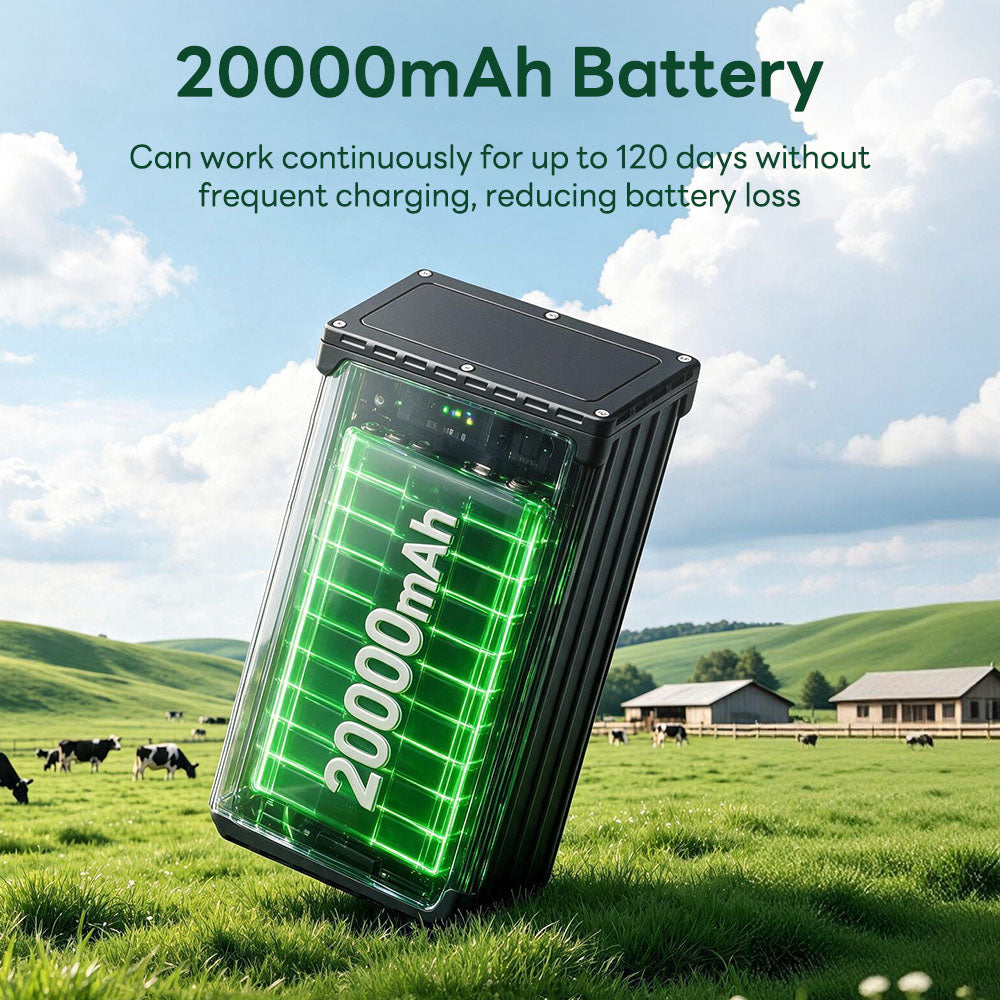

20000mAh Battery

Meet the long-term uninterrupted monitoring needs of outdoor breeding. 20000mAh large-capacity battery delivers up to 120 days ultra-long standby, ensuring continuous device operation and reducing maintenance frequency.

Multiple Function

Geo-fence, Low Battery Alarm, Data Storage In Blind Area, Remotely OTA Upgrade

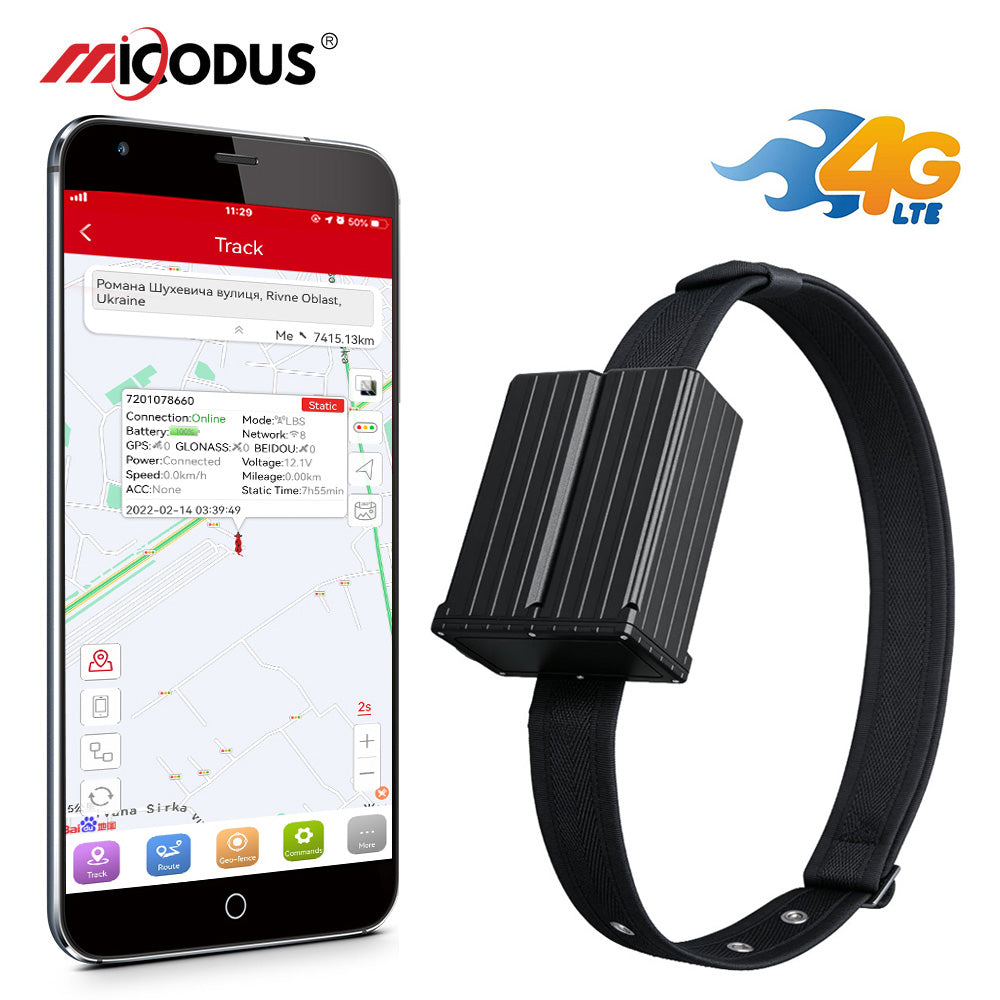

Web Tracking Platform and Mobile APP

Lifetime free Micodus tracking system! Web server and both iOS and Android version APP are available!
www.micodus.net
APP: MiCODUS

Characteristics

Model MP30G

Weight 476.5g

Dimensions 82mm(L)*37mm(W)*48mm(H)

Battery Built-in 3.7V 4000mAh Polymer Battery

Working Voltage 3.4-4.5V DC

Working Current 12V/Average 60mA

Sleep Current 12V/Average 5mA

Working Temperature -20℃ - 75℃

Working Humidity 10%-85%RH

SIM Card Nano SIM

Celluar Antenna Built-in, FPC

Working Frequency 2G GSM/GPRS: 850/900/1800/1900MHz；4G LTE CAT1: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66

GNSS GPS+BDS+GLONASS

GPS Frequency L1: 1575.42±1.023MHz

BDS Frequency B1:1561.098±2.046MHz

Satellite Channels 32

Hot/Cold Start <1s，<32s @ Open Sky

GNSS Antenna Built-in Ceramics GNSS Antenna

Positioning Type GNSS+WiFi+LBS+AGPS

Accuracy Location accuracy: <10m（1σ） Timing accuracy: <30ns（1σ） Speed accuracy: <0.1m/s（1σ）

Magnetic Charge Port 1 Channel

Buzzer 1 Channel

Led Indicator Charge(Red), GPS(Blue), Celluar(Yellow), Seeking Pet(White)
